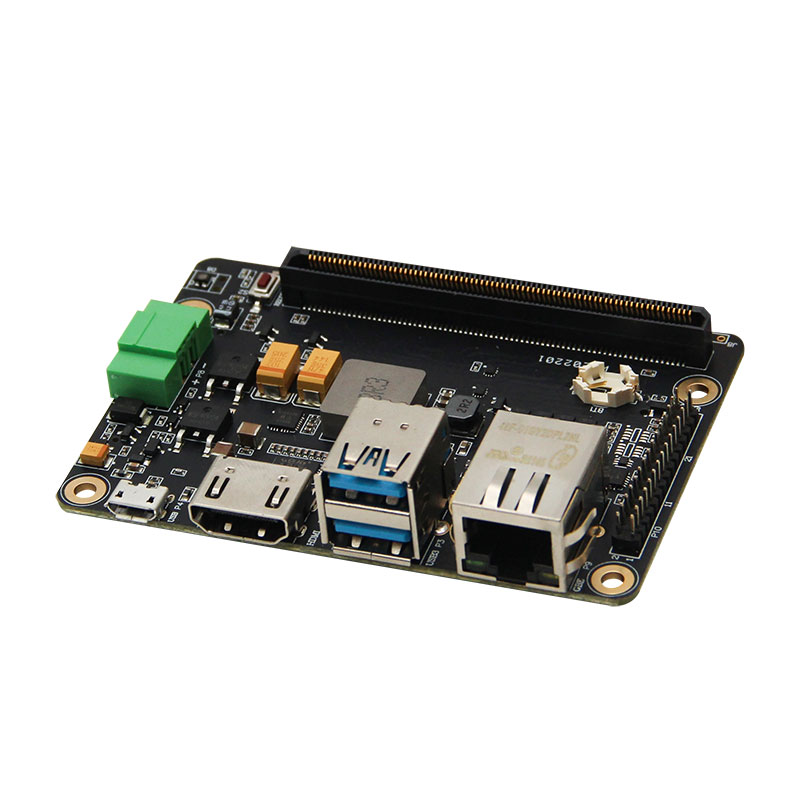

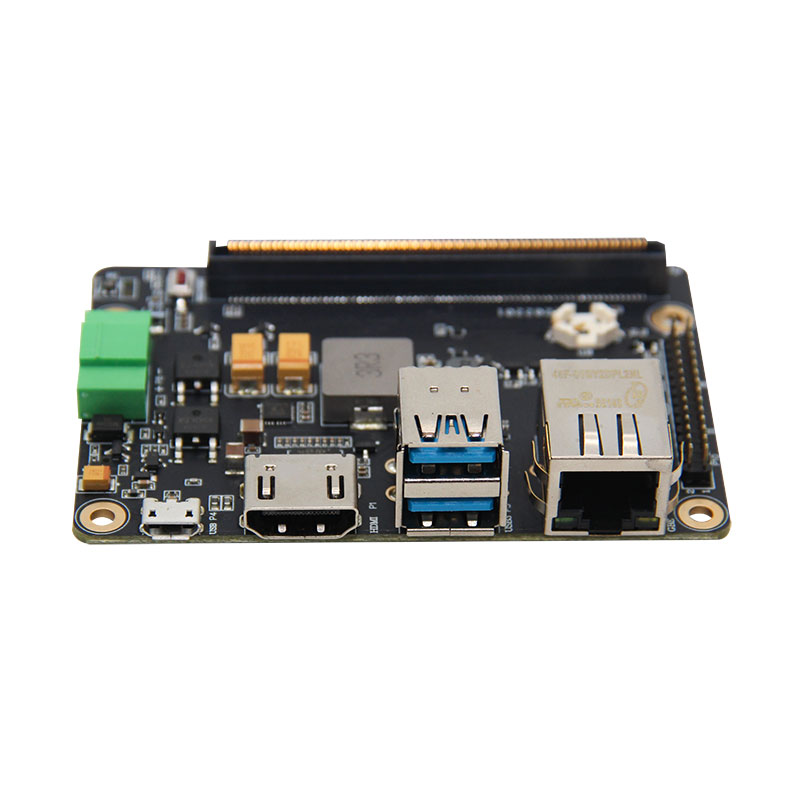

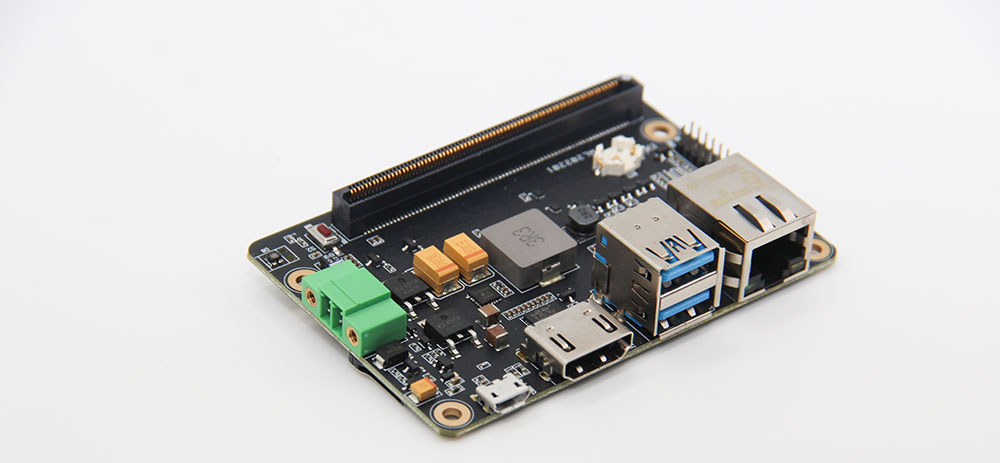

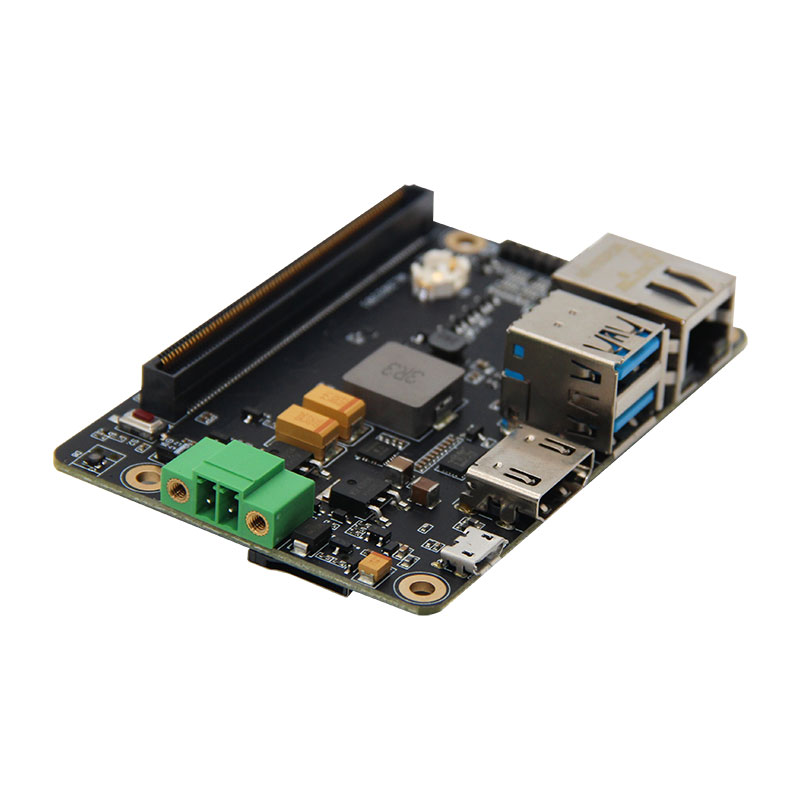

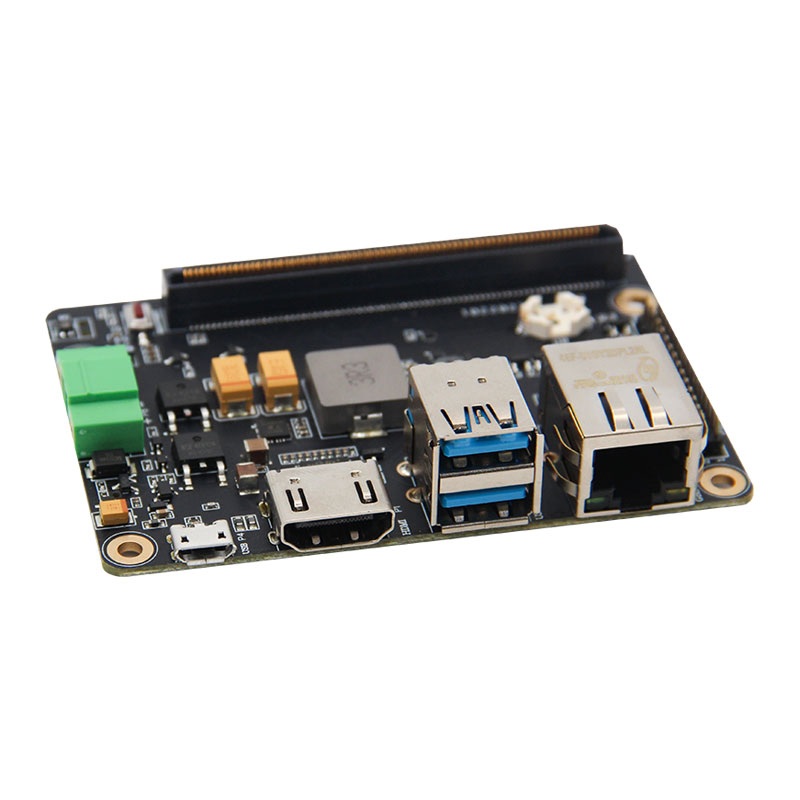

Y-C1 載板/開發(fā)板

* 適配模組:NVIDIA Jetson TX2 8G/TX2i Module

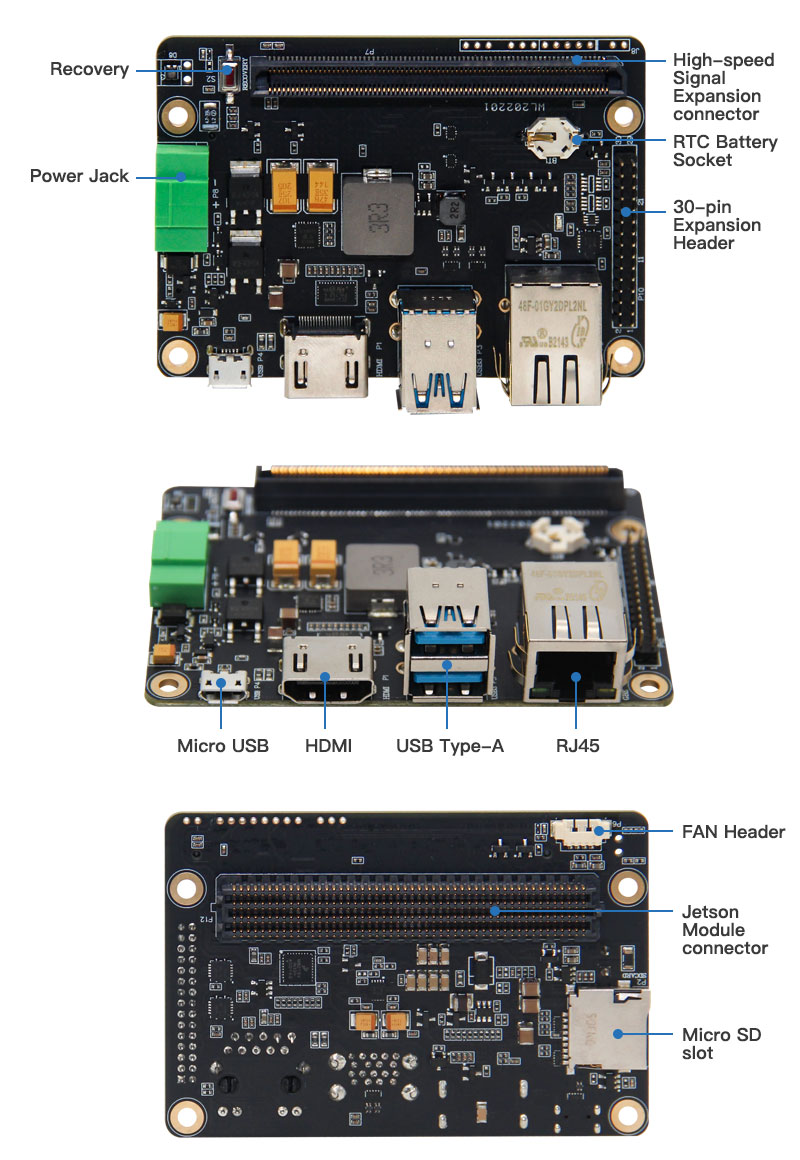

* 接口:2xUSB 3.0, 1x Micro USB, 1x HDMI，1x Gigabit Ethernet(10/100/1000 BASE-T) RJ45

* Other I/O:1x30-pin expansion header, 1xHigh-Speed signal expension connector

* 電源:DC 7V~19V

* 工作溫度:-20°C to 65℃

Product Name	Y-C1
Type	Development Board/Carrier Board
Jetson Module Supported	NVIDIA Jetson TX2 8G/TX2i
Networking	1x Gigabit Ethernet (10/100/1000 BASE-T) RJ45
USB	2x USB 3.0 1x Micro USB
Display	1x HDMI
FAN	1x FAN connector

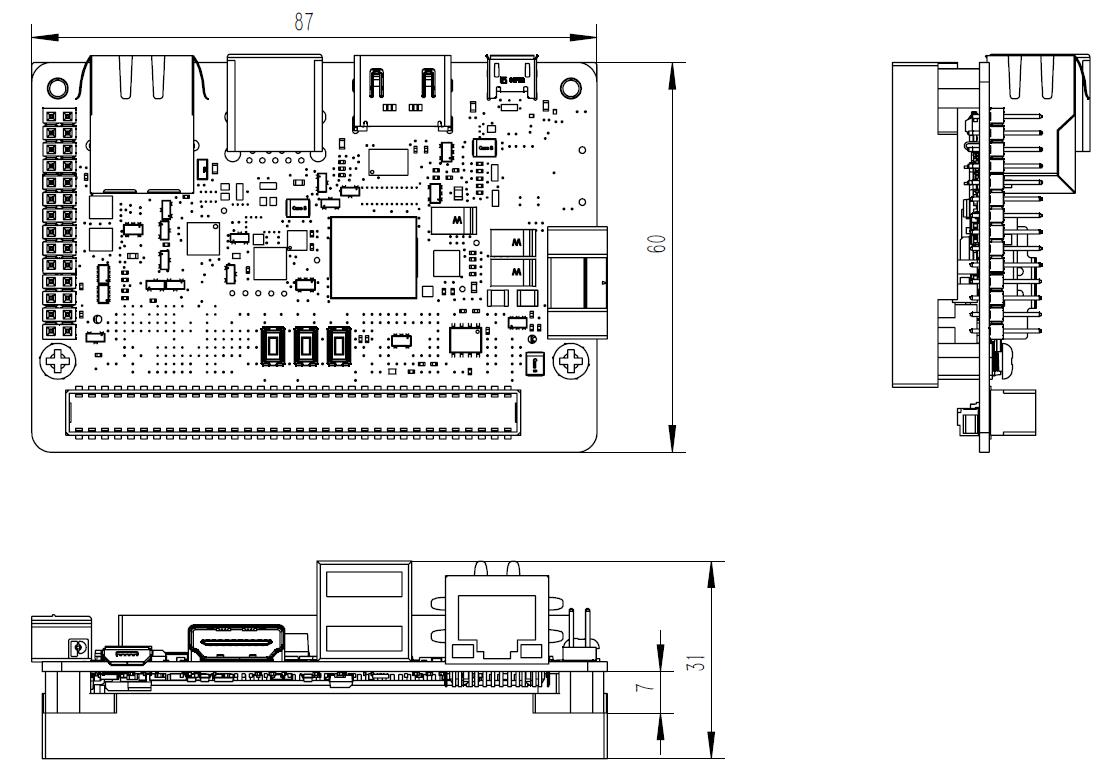

Mechanical	87mm*60mm*16mm
Weight	51g
Operating Temperature	-20℃~+65℃

Jetson TX2 Series ModuleTechnical Specifications

	Jetson TX2 8GB	Jetson TX2i
AI Performance	1.33 TFLOPS	1.26 TFLOPS
GPU	NVIDIA Pascal? architecture with 256 NVIDIA CUDA cores 1.3 TFLOPS (FP16)
CPU	Dual-core NVIDIA Denver 2 64-bit CPU and quad-core Arm® Cortex®-A57 MPCore processor complex
Memory	8 GB 128-bit LPDDR4 59.7 GB/s	8GB 128-bit LPDDR4 (ECC Support) 51.2GB/s
Power	7.5W | 15W	10W - 20W
PCIe	up to 1 x1 + 1 x4 OR 1 x1 + 1 x1 + 1 x2 (PCIe Gen2)
CSI Camera	Up to 6 cameras (12 via virtual channels) 12 lanes MIPI CSI-2 D-PHY 1.2 (up to 30 Gbps)
Video Encode	1x 4K60 (H.265) 3x 4K30 (H.265) 4x 1080p60 (H.265)
Video Decode	2x 4K60 (H.265) 7x 1080p60 (H.265) 14x 1080p30 (H.265)
Display	2 multi-mode DP 1.2/eDP 1.4/HDMI 2.0 2 x4 DSI (1.5Gbps/lane)
Networking	1x GbE, WLAN	1x GbE
Mechanical	87mm x 50mm 400-pin connector Integrated Thermal Transfer Plate
